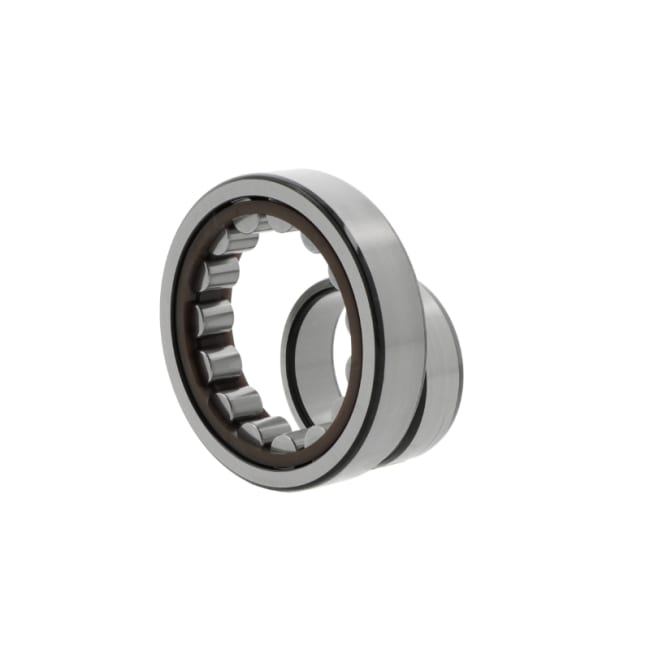

NU2212 -E-TVP3 NKE
Prod. varenr: NU2212
Produktnummer: p-NU2212-E-TVP3NKE
EAN: 9008745297205Sylindriske rullelager
| Beskrivelse Kort | NU2212 -E-TVP3 |
| Salgsmerke | NKE - Cylindrical roller bearings |
| Aksel diameter | 60 mm |
| Utvendig diameter | 110 mm |
| Kulelagerets Bredde | 28 mm |
| Vekt | 1.190 kg |
| Tetning | None. open bearing |
| Klaring/glapp | Normal |
| Boring | Cylindrical bore |
| Holder | Polyamide cage |
| Strøm Isolasjon | No current insulation |
| Design | Floating bearing. inner ring removable on both sides |
| Ytre Ring | Without groove/lubrication holes |
| Rullerader | Single row bearing |
| Temperaturområde | -30 to +120 °C |
| Toleranseklasse | Tolerance class P0/PN2 / ABEC 1 |
| Fabrikat | NKE |
| Lagertype | Sylindriske rullelager |
| Artikkelnummer | NU2212 |
