70UHC20 .A15.2Z.I/I.L UKF
Prod. varenr: 70UHC20
Produktnummer: p-70UHC20-A15-2Z-I-I-LUKF
Lagerbeholdning:
inkl. mva.

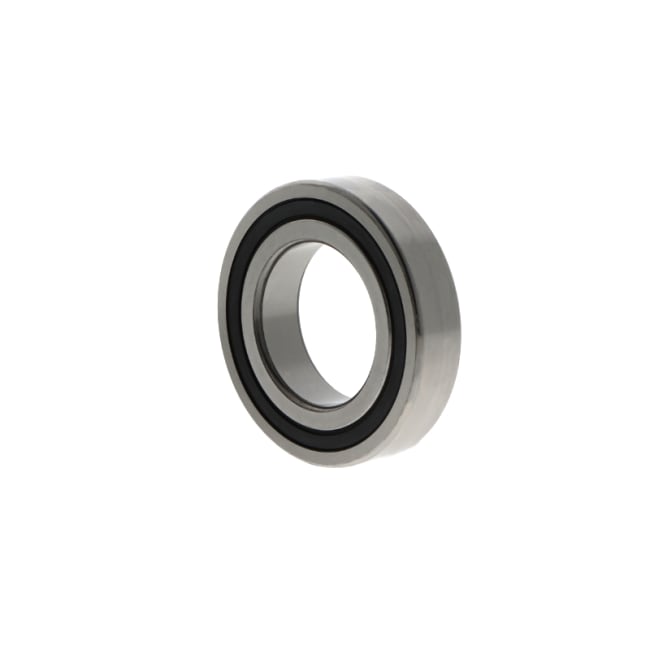

Spindellager
| Beskrivelse Kort | 70UHC20 .A15.2Z.I/I.L |
| Salgsmerke | UKF - Spindle bearings |
| Aksel diameter | 20 mm |
| Utvendig diameter | 42 mm |
| Kulelagerets Bredde | 12 mm |
| Vekt | 0.070 kg |
| Tetning | Non-contact gap seals on both sides |
| Arrangement | Single universal bearing |
| Ball Rekke | Single row bearing |
| Holder | Hard tissue cage |
| Kontaktvinkel | 15 degree |
| Strøm Isolasjon | Insulating ceramic balls |
| Smøring | High temperature grease |
| Materiale | Standard bearing steel |
| Preload | Light preload |
| Temperaturområde | +40 to +80 °C |
| Toleranseklasse Indre Ring | More accurate than P4 or ABEC 7 |
| Toleranseklasse Yttre Ring | More accurate than P4 or ABEC 7 |
| Versjon | High-speed bearing |
| Fabrikat | UKF |
| feature lubrication hole | Without lubrication groove |
| Lagertype | Spindellager |
| Artikkelnummer | 70UHC20 |
